Faculty of pharmacy

Execution of Faculty pharmacy for future company at Arab Academy for Science, Technology& Maritime Transport Abi Qir Alexandria.

Project scope
 “Electric Works”
NCTC Supply, install, Connect and test the following items:-
1-transformers (two transformers 1600 KVA).
2-Electrical Generator (600 KVA)
3-Main electrical panels (MDB , EMDB,ATS ,PFC Panels)
4-MCC panels (For HVAC System) total MCC 11
5-Electrical panels (SMDB , Distribution panels) total panels 150
6-Single and multicore cables  (from 4*3 up to 4* 300 mm2 )
7-Bus Way zucchini (2500,1250,600,160 Amp )

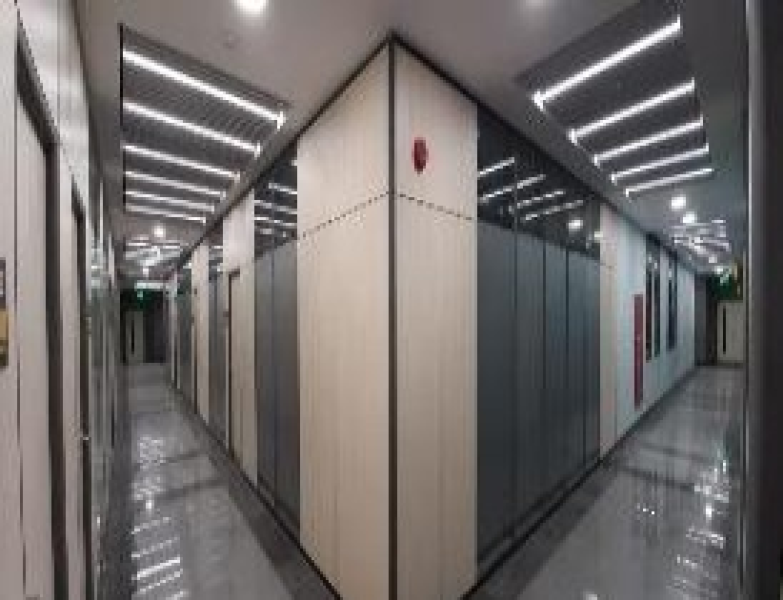

8-Led Lighting Fixtures (60*60 ,120 cm IP 65  total lighting fixtures   bittern ,spots ,street) quantity 3900 lighting
9-power , sockets outlets ,floor box , industrial sockets ,disconnect   switches (normal and waterproof ) quantity 4300 outlets
10- data , camera and Wi-Fi outlets (normal and waterproof ) quantity 1100 outlets
11-Data racks , patch panels and R&M R6 Cables
12-(main panel 8 loops, repeater, 460 devices)
13-Fire Alarm system Notifier brand
14-Sound system (Bose, Crown, sure brand)
15-Earthling system (Furse brand)
16-Fire Pro and Fire Search system (Bavaria brand)

Project scope
 “Mechanical Works”
NCTC Supply, install, Connect and test the following items:-
1-VRV INDOOR UNITS “fan coil unit, c/w, cooling coil ARI, AL fins coil, expansion device, thermostat, charging valves, multispeed fan motor and controls, simple wired (and wireless when needed) remote control switch, overloads, controls, disconnect switch, wiring contactors, refrigerant charge, supports, drain up pumps when needed, equipped with long life filter, suitable external static pressure”.
2-VRV OUTDOOR UNITS” VRV Heat Pump Outdoor unit suitable for high outdoor humidity and temperature complete with all standard, double skin accessories, schedules and specifications such as (DX- coil with copper tube pipes, copper fins, axial  fan vertical direction ultra low noise fan, scroll hermatic compressor type, one circuit type with R-410A, Safety Devices, auto leak detection function, automatic test operation, oil recovery system, steel”
3-Refrigerant Copper piping (DIFFERENT SIZES) according to fcus capacity complete with distribution joins, insulated with Nitrile Rubber Tubular Insulation and covered with polychelid and shall include all fittings, hangers, flexible connections.
4-split air conditioning unit, c/w, hermetic compressor, condenser coil, condenser fan and motor, expansion device, charging valves and controls, Digital- thermos ate evaporator unit, remote control switch, disconnect switch, overloads, refrigerant charge, supports.
5-Exhaust fans ,epoxy coated impeller and housing c/w electric motors class f IP55, casing, gravity shutter, and bird screen at discharge side, hangers, supports, canvass duct connections, electrical power, disconnect switch and control cables connection.
